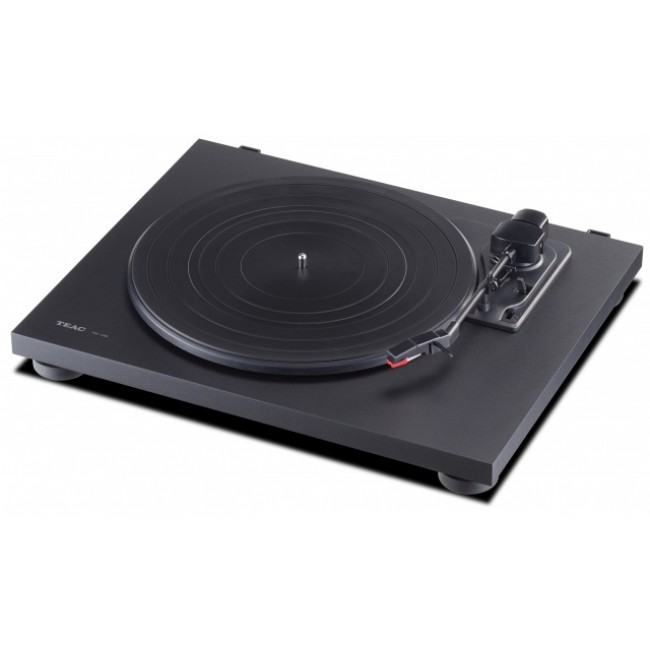

TEAC TN-100 Pikap çalar teknik bilgiler
TEAC TN-100 klasik plak çalar, herkesin alabileceği bir fiyatta. Müzik tutkunları için tasarlanan kayış sürümlü, dahili Phono Ekolayzer Katı (Line/Phono), MM tipi fonograf iğne dahil, Yüksek performanslı, düz pikap kolu, Statik dengeli, USB çıkışı ile plak koleksiyonlarızı Mac veya PC bilgisayarlarına kaydedilmesini sağlar.
Birçok bütçeli pikapın aksine, TN-100 titreşimleri azaltmak ve daha temiz ve daha zengin bir ses sağlamak için ahşap bir gövdeye sahiptir. Üç hızlı, otomatik dönüşlü pikap, düz siyah veya kiraz kaplamalı olarak mevcuttur.
| Turntable section | |
| Drive System | Belt Drive |
| Motor | DC Motor |
| Speed | 33 1/3 RPM, 45 RPM, 78 RPM |
| Rotation Speed Variation | +/–2% |
| Wow and Flutter | 0.2% |
| Signal-to-Noise Ratio | 67dB or higher (A-weighted, 20kHz LPF) 60dB or higher (unweighted, 20kHz LPF) |
| Platter | Plastic |
| Diameter of Platter | 12″, 30cm |
| Tonearm section | |
| Type | Static Balance, Straight |
| Effective Arm Length | 8.8″, 223mm |
| Stylus Pressure Range | 0 to 5g |
| Supported Cartridge Weight | 3.5 to 6.5g |
| Anti-skating Adjustment | Supported |
| Cartridge section | |
| Type | Fixed |
| Stylus Shape | Elliptical |
| Stylus Construction | Bonded Round Shank |
| Frequency Response | 20Hz to 20kHz |
| Channel Separation | 20dB at 1kHz |
| Channel Balance | 2.0dB |
| Tracking Force | 1.5 to 2.5g |
| Vertical Tracking Angle | 20 degrees |
| Supported Load Impedance | 47k ohms |
| Output Voltage | 4.5mV +/–3dB |
| Stylus Pressure | 2.0g +/–0.5g |
| Cartridge Weight | 5.7g +/–0.5g |
| Head-shell Weight | 10g (including Screws, Nuts and Wires) |
| Phono Equalizer Amplifier | |
| Type of Amplifier | MM type (On/Thru switchable) |
| Analog Output | |
| Connector | RCA Pin jack (Gold-plated) |
| Output Voltage | Phono/Line switchable |
| Phono Output | 4.5mV +/–3dB |
| Line Output | 120mV (–13dBV) |
| USB Output section | |
| Connector | USB B type |
| Output Signal | PCM 48kHz/16-bit |
| Supported OS | Windows 7, Windows 8, Windows 8.1, Windows 10 OS X Lion(10.7), OS X Mountain Lion(10.8), OS X Mavericks(10.9) |
| Power | AC 100 to 240V, 50/60Hz |
| Power Consumption | 1.5W (less than 0.5W at Standby) |
| Overall Dimensions (W x H x D) | 16.5″ x 4.6″ x 14.0″ 420 x 117 x 356 mm |
| Weight | Approx. 10.8 lbs. 4.9 kg |
| Accessories | Rubber Sheet, EP Adapter, Counter Weight, Fixed Head-shell (TEAC cartridge), Platter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner’s Manual (including Warranty Card) |
