Açıklama

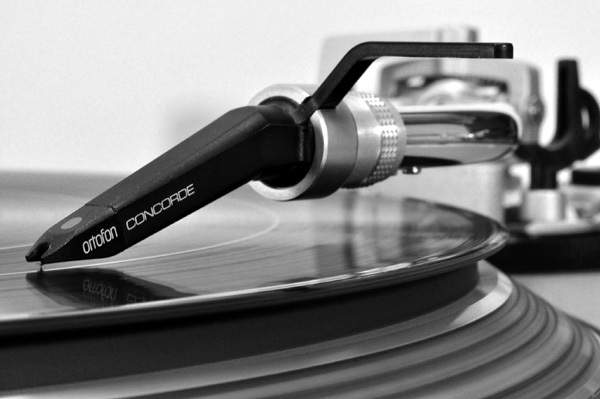

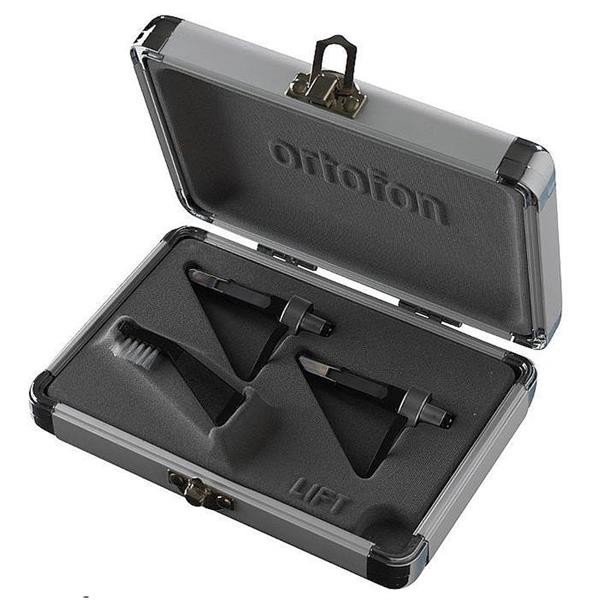

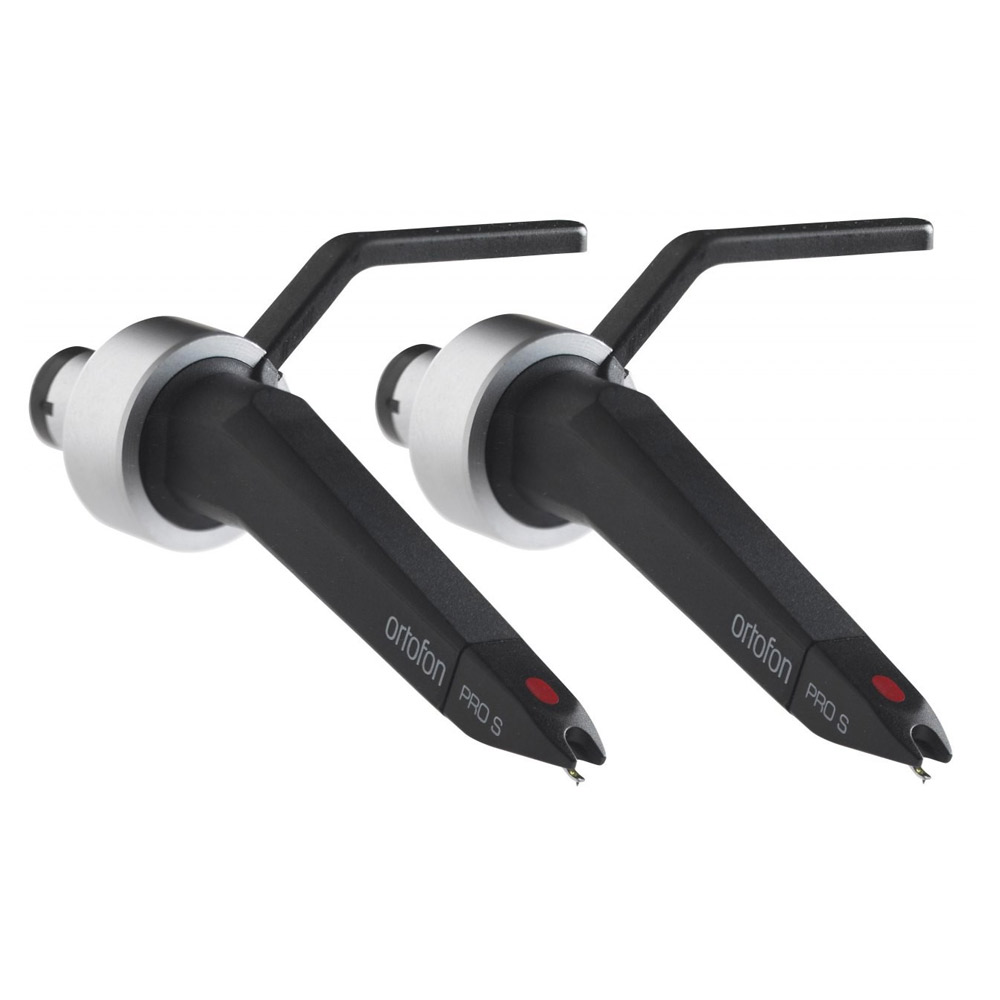

Ortofon Concorde Pro S 2 Kafa + 2 İğne + Metal Çanta
Profesyonel seri tüm pikaplar ile uyumludur.
Ortofon kalitesi her zaman en iyi müzik için.
Özellikler
- Output voltage at 1000 Hz, 5cm/sec. – 5 mV
- Channel balance at 1 kHz – 2 dB
- Channel separation at 1 kHz – 20 dB
- Channel separation at 15 kHz – 15 dB
- Frequency range – 20-20.000 Hz
- Frequency response – 20-18.000 Hz + 3 / – 2 dB
- FIM distortion at recommended tracking force, DIN 45.542 – < 1%
- Tracking ability at 315Hz at recommended tracking force – 70 µm
- Compliance, dynamic, lateral – 7 µm/mN
- Stylus type – Spherical
- Stylus tip radius – R 26 µm
- Equivalent stylus tip mass – 0,5 mg
- Tracking force range – 3,0-5,0 g (30-50 mN)
- Tracking force, recommended – 4,0 g (40 mN)
- Tracking angle – 20°
- Internal impedance, DC resistance – 750 Ohm
- Internal inductance – 450 mH
- Recommended load resistance – 47 kOhm
- Recommended load capacitance – 200-600 pF
- Cartridge colour, body/stylus – Black/Black
- Cartridge weight – 18,5 g
- Replacement stylus unit – PRO S
