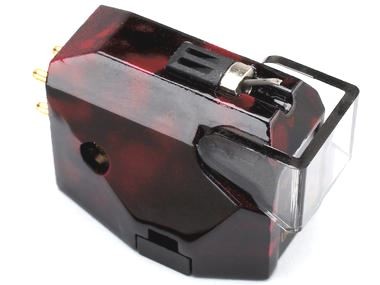

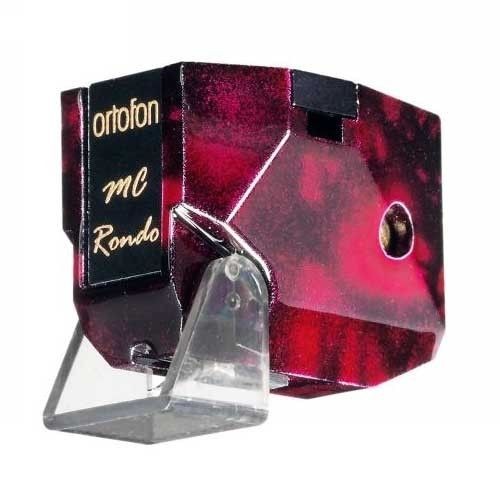

Ortofon MC Rondo Red
The Rondo Red is a very homogeneous all round cartridge meaning that sound image will tend to less dynamic strength and smoother reproduction-working perfect with all sorts of not very complex music.
The Rondo Red has a very fine polished elliptical diamond is mounted on a cylindrical aluminum cantilever.
The cartridge is clearly out of the same family of sound as Bronze and Blue – all of them taking benefit from the wooden housings.
Recommended load around 100 Ohm or even higher if added “air“ might be preferred.
|Output voltage at 1000 Hz, 5cm/sec.||0,5 mV|
|Channel balance at 1 kHz||2 dB|
|Channel separation at 1 kHz||22 dB|
|Channel separation at 15 kHz||15 dB|
|Frequency range at – 3dB||20-30.000 Hz|
|Frequency response||20-20.000 Hz ±2 dB|
|Tracking ability at 315Hz at recommended tracking force *)||80 µm|
|Compliance, dynamic, lateral||15 µm/mN|
|Stylus type||Nude elliptical aluminium cantilever|
|Stylus tip radius||r/R 8/18 µm|
|Tracking force range||2-2,5 g (20-25 mN)|
|Tracking force, recommended||2,3 g (23 mN)|
|Internal impedance, DC resistance||6 Ohm|
|Recommended load impedance||10-200 Ohm|
|Cartridge body material||Grinded wood/Resin comp.|
|Cartridge weight||10,5 g|
